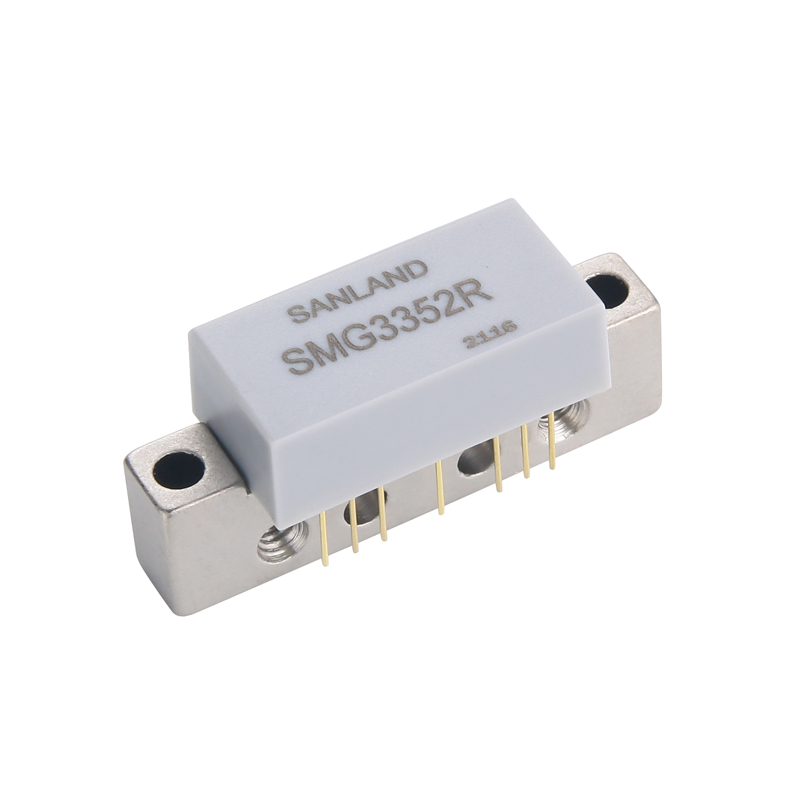

SMG3352R/CATV Reverse Amplifier Module

SMG2242R.PDF FEATURES ● GaAs active devices ● Power gain @24.5dB ● Low distortion ● Excellent linear gain ● Low noise figure ● High reliability ● Low cost   DESCRIPTION The SMG2242R is a GaAs hybrid push-pull amplifier module. The part employs GaAs dies and is operated from 5 MHz to 200MHz with supply voltage +24V(DC).  CHARACTERISTICS (Bandwidth 5 to 200MHZ; Tmb＝25℃, VB＝24V, ZS＝ZL＝75Ω) SYMBOL PARAMETER UNIT MIN. TYP. MAX. CONDITIONS Gp Power Gain dB 24 - 25 f=10MHZ Gp Power Gain dB - 24.5 - f=200MHZ SL Slope cable equivalent dB - - +0.5 f=5 to 200MHZ FL Flatness of frequency response dB - - +0.5 f=5 to 200MHZ S11 Input Return Loss dB - - -20     f=5 to 200MHZ S22 Output Return Loss dB - - -20 f=5 to 200MHZ CTB Composite Triple Beat dB - - -66 17channels flat; Vo=50dBmV; CSO Composite Second Order distortion dB - - -65 Xmod Cross Modulation dB - - -60 F Noise Figure dB - 4.3 - f=200 MHZ Itot Total Current Consumption mA 130 160 - VB=+24V The module normally operates at VB=24 V(±0.5) If you want to know more about our product details,Please reply to get E-Catelog and FOC samples,Thank you.

SMG2301R.PDF FEATURES ● GaAs active devices ● Power gain @30dB ● Low distortion ● Excellent linear gain ● Low noise figure ● High reliability ● Low cost   DESCRIPTION The SMG2301R is a GaAs hybrid push-pull amplifier module. The part employs GaAs dies and is operated from 5 MHz to 200MHz with supply voltage +24V(DC).  CHARACTERISTICS (Bandwidth 5 to 200MHZ; Tmb＝25℃, VB＝12V, ZS＝ZL＝75Ω) SYMBOL PARAMETER UNIT MIN. TYP. MAX. CONDITIONS Power Gain dB 30 -31 31.5 f=10MHZ Slope cable equivalent dB -0.5 +0.5 f=5 to 200MHZ Flatness of frequency response dB ±0.3 f=5 to 200MHZ Input Return Loss dB -18 f=5 to 200MHZ Output Return Loss dB -18 f=5 to 200MHZ Composite Triple Beat dB -62 17 channels ;VO=50dBmV CTB measured at 77.25 MHz CSO measured at 78.5 MHz; Composite Second Order distortion dB -63 Cross Modulation dB -62 Noise Figure dB 4 f=200 MHZ Total Current Consumption mA 260 290 VB=+12V The module normally operates at VB=12 V(±0.5) If you want to know more our product details,please reply to get E-Catelog and FOC samples,Thank you.

SMG2302R.PDF FEATURES ● Si active devices ● Power gain @30dB ● Low distortion ● Excellent linear gain ● Low noise figure ● High reliability ● Low cost   DESCRIPTION The SMG2302R is a hybrid push-pull amplifier module. The part employs GaAs dies and is operated from 5 MHz to 200MHz with supply voltage +24V(DC).  CHARACTERISTICS (Bandwidth 5 to 200MHZ; Tmb＝25℃, VB＝24V, ZS＝ZL＝75Ω) SYMBOL PARAMETER UNIT MIN. TYP. MAX. CONDITIONS Gp Power Gain dB 29.5 - 31 f=10MHZ Gp Power Gain dB - 30.5 - f=200MHZ SL Slope cable equivalent dB -0.5 - +0.5 f=5 to 200MHZ FL Flatness of frequency response dB - - +0.5 f=5to 200MHZ S11 Input Return Loss dB - - -20 f=5 to 200MHZ S22 Output Return Loss dB - - -20 f=5 to 200MHZ CTB Composite Triple Beat dB - - -66 17channels flat; Vo=50dBmV; CSO Composite Second Order distortion dB - - -65 Xmod Cross Modulation dB - - -60 F Noise Figure dB - 4.3 - f=200 MHZ Itot Total Current Consumption mA 130 160 - VB=+24V The module normally operates at VB=24 V(±0.5) If you want to know more about our product details,Please reply to get E-Catelog and FOC samples,Thank you.

SMG2342R.PDF FEATURES ● Si active devices ● Power gain @35dB ● Low distortion ● Excellent linear gain ● Low noise figure ● High reliability ● Low cost   DESCRIPTION The SMG2342R is a hybrid push-pull amplifier module. The part employs GaAs dies and is operated from 5 MHz to 200MHz with supply voltage +24V(DC).  CHARACTERISTICS (Bandwidth 5 to 200MHZ; Tmb＝25℃, VB＝24V, ZS＝ZL＝75Ω) SYMBOL PARAMETER UNIT MIN. TYP. MAX. CONDITIONS Gp Power Gain dB 34.5 - 35.5 f=10MHZ Gp Power Gain dB - 35 - f=200MHZ SL Slope cable equivalent dB -0.5 - +0.5 f=5 to 200MHZ FL Flatness of frequency response dB - - ±0.5 f=5to 200MHZ S11 Input Return Loss dB - - -18 f=5 to 200MHZ S22 Output Return Loss dB - - -18 f=5 to 200MHZ CTB Composite Triple Beat dB - - -66 17channels flat; Vo=50dBmV; CSO Composite Second Order distortion dB - - -65 Xmod Cross Modulation dB - - -60 F Noise Figure dB - 4.3 - f=200 MHZ Itot Total Current Consumption mA 130 160 - VB=+24V If you want to know more our product detais,Please reply to get E-Catelog and FOC samples,Thank you.

SMG3242R.PDF FEATURES ● Si active devices ● Power gain @24.5dB ● Low distortion ● Excellent linear gain ● Low noise figure ● High reliability ● Low cost   DESCRIPTION The SMG3242R is a hybrid push-pull amplifier module. The part employs GaAs dies and is operated from 10 MHz to 300MHz with supply voltage +24V(DC).  CHARACTERISTICS (Bandwidth 5 to 300MHZ; Tmb＝25℃, VB＝24V, ZS＝ZL＝75Ω) SYMBOL PARAMETER UNIT MIN. TYP. MAX. CONDITIONS Gp Power Gain dB 24 - 25 f=10MHZ Gp Power Gain dB - 24.5 - f=300MHZ SL Slope cable equivalent dB -0.5 - +0.5 f=10 to 300MHZ FL Flatness of frequency response dB - - ±0.5 f=10 to 300MHZ S11 Input Return Loss dB - - -20 f=10 to 300MHZ S22 Output Return Loss dB - - -20 f=10to 300MHZ CTB Composite Triple Beat dB - - -66 17channels flat; Vo=50dBmV; CSO Composite Second Order distortion dB - - -65 Xmod Cross Modulation dB - - -60 F Noise Figure dB - 4.3 - f=200 MHZ Itot Total Current Consumption mA 130 160 - VB=+24V The module normally operates at VB=24 V(±0.5) If you want to know more about our product detais,Plese reply to get E-Catelog and FOC samples,Thank you.

SMG3302R.PDF FEATURES ● Si active devices ● Power gain @30dB ● Low distortion ● Excellent linear gain ● Low noise figure ● High reliability ● Low cost   DESCRIPTION The SMG3302R is a hybrid push-pull amplifier module. The part employs GaAs dies and is operated from 10 MHz to 300MHz with supply voltage +24V(DC).  CHARACTERISTICS (Bandwidth 5 to 300MHZ; Tmb＝25℃, VB＝24V, ZS＝ZL＝75Ω) SYMBOL PARAMETER UNIT MIN. TYP. MAX. CONDITIONS Power Gain 29.5 - - 31 f=10MHZ Power Gain - 30.5 - f=300MHZ Slope cable equivalent -0.5 - - +0.5 f=10 to 300MHZ Flatness of frequency response - - - ±0.5 f=10to 300MHZ Input Return Loss - - - -18 f=10 to 300MHZ Output Return Loss - - - -18 f=10to 300MHZ Composite Triple Beat - - - -66 17channels flat; Vo=50dBmV; Composite Second Order distortion - - - -65 Cross Modulation - - - -60 Noise Figure - 4.3 - - f=200 MHZ Total Current Consumption 130 160 - - VB=+24V The module normally operates at VB=24 V(±0.5), If you want to know more about our product detairs,Please reply to get E-Catelog and FOC samples,Thank you.

SDU RFoG F02 datasheet FEATURES  1.Standards compliant OBI‐free technology enables high performance upstream operation in an RFoG environment. 2.19 dBmV RF output level for single subscriber (SDU) applications. 3.Burst mode is supported. 4.OBI-Free technology on this model supports up to 16 R-ONUs transmitting into a single optical input. 5.54/87/105/258–1218MHz forward on 1550 nm and 5–42/65/85/204MHz return on 1610 nm wavelengths. 6.1610nm DFB laser transmitter supports full DOCSIS® 3.0 operation. 7.DC power supported via RF port or dedicated power port. 8.10/10, 10/1, 2/1, 1/1Gbps PON pass-through and no PON pass-through options.   PRODUCT OVERVIEW The SANLAND SDU RFoG F02 Optical Network Unit (R-ONU) for Single Dwelling Unit (SDU)applications support cost-effective deployment of full interactive video, voice, and data services over an RFoG network.SDU RFoG F02 enables multiple simultaneous upstream RF channel transmissions, enabling multiple MAC domains and full DOCSIS 3.0 channel usage to efficiently coexist, offering increased upstream bandwidth usage for RF returns as compared to non-OBI-free models. The 19 dBmV RF output with AGC (Automatic Gain Control) supports a wide array of SDU designs, with a 5–42/65/85/204MHz return path using 1610 nm wavelength optics and a 54/87/105/258–1218MHz forward path on 1550 nm wavelength optics.

SMG1034PM.PDF FEATURES ● GaAs active devices ● Power gain @34dB ● Low distortion ● Excellent linear gain ● Low noise figure ● High reliability ● Low cost   DESCRIPTION The SMG1034PM is a GaAs hybrid push-pull amplifier module. The part employs GaAs dies and is operated from 50 MHz to 1003MHz with supply voltage +24V(DC).  CHARACTERISTICS (Bandwidth 50 to 1003MHZ; Tmb＝25℃, VB＝24V, ZS＝ZL＝75Ω) SYMBOL PARAMETER UNIT MIN. TYP. MAX. CONDITIONS Gp Power Gain dB 32.5 33.5 34 f=50MHZ Gp Power Gain dB 35.0 36 37 f=1003MHZ SL Slope cable equivalent dB 1.0 2.0 3 f=50 to 1003 MHZ FL Flatness of frequency response dB - - ±0.5 f=50 to 1003 MHZ S11 ＆ S22 Input/Output Return Loss dB - - -16 f=50 to 860 MHZ S11 ＆ S22 Input/Output Return Loss dB - - -12 f=861 to 1003 MHZ CTB Composite Triple Beat dB - - -66 99channels flat; Vo=44dBmV; CTB measured at 543.25 MHz; CSO measured at 544.5 MHz; CSO Composite Second Order distortion dB - - -65 Xmod Cross Modulation dB - - -61 Vo Output Voltage dBmV - - - dim=-60dB F Noise Figure dB - 5.0 6.2 f=860 MHZ Itot Total Current Consumption mA 270 340 - VB=+24V The module normally operates at VB=24 V(±0.5) If you want to know more about our product details,Please reply to get E-Catelog and FOC samples,Thank you.
