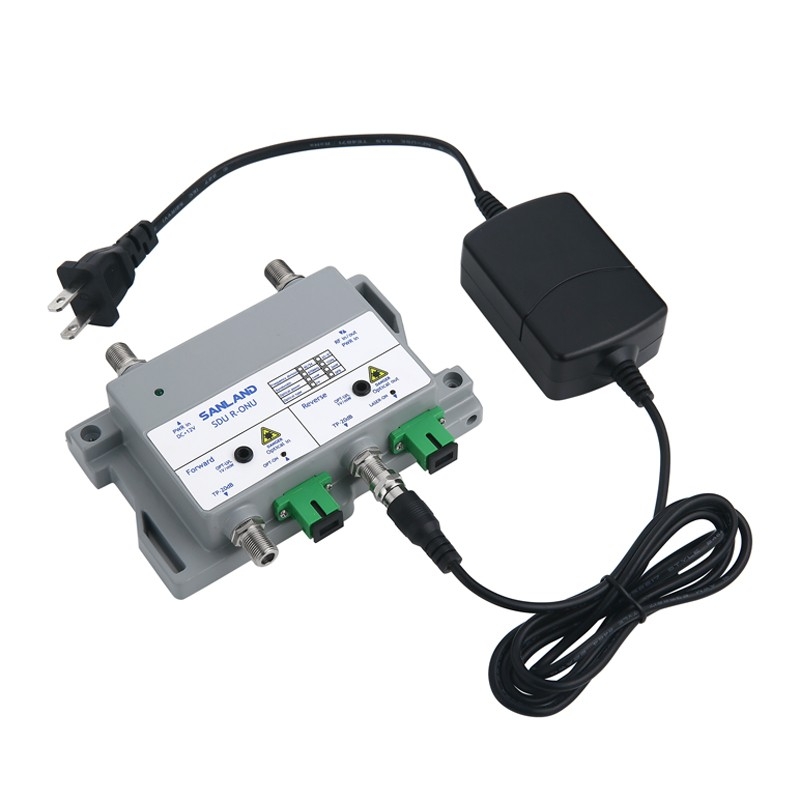

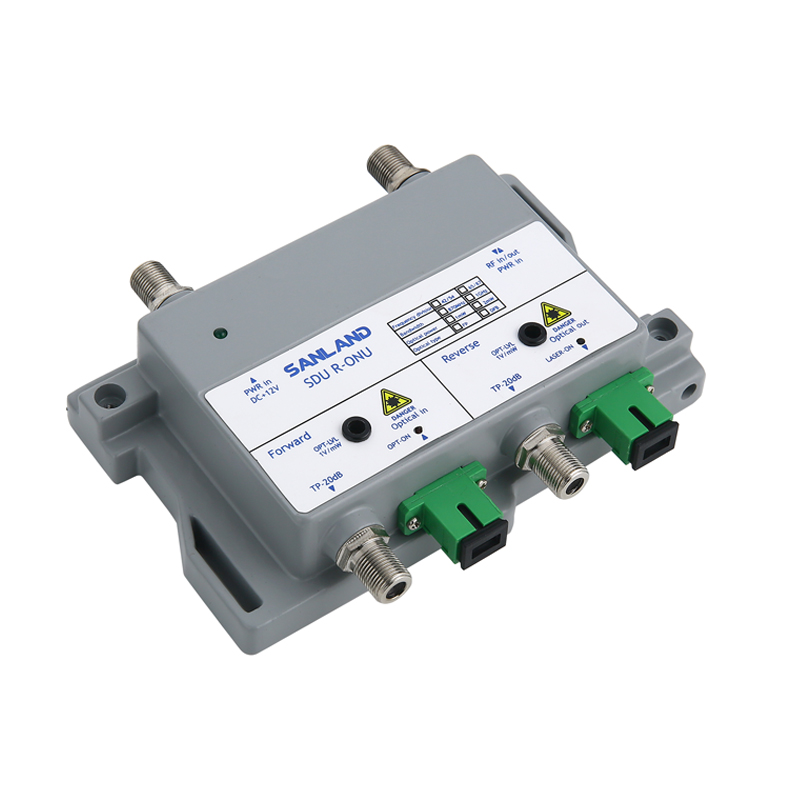

SDU R-ONU R-ONU Mini Node

SMO-P16.PDF FEATURES ● CATV 1GHz RF frequency bandwidth. ● Integrated WDM for GPON OLT wavelength bypass (1490/1310nm). ● Automatic gain control (AGC) of RF output level. ● Compact integrated mechanical housing. ● Module design and Plug & Play function. ● DC power on indication LED. ● AC/DC 12V power adaptor(standard)   DESCRIPTION SMO-P16 Optical Receiver is a high performance 1GHz CATV optical receiver for converting TV signal from optical fiber network into RF signal over coax cabling in residential homes. This product features compact size, high CNR, low distortion, low power consumption, easy installation and cost effectiveness. It supports conventional analog TV RF as well as Digital Video Broadcasting signals. RF output level can be adjusted with manual gain control. The SMO-P16 is the best choice to be used on FTTH services. It has WDM devices integrated for combing GPON (IP) signals of wavelengths 1310nm (upstream) & 1490nm (downstream) with 1550nm CATV signal in the same fiber.

SD-OP101 V-ONU.PDF Description: The SD-OP101 V-ONU is a video optical receiver (V-ONU) for FTTH installed in the subscriber's home with a CATV system. It has the following features. (1) Optical receiver for video with a frequency band of 70 to 2681 MHz (8) Equipped with a new AGC function (2) BS (right-handed / left-handed), CS (right-handed) receivable Optical input range -14 to -4 dBm, RF output within ± 3 dB ③ With remote control function (band-specific control function) ④ Equipped with a tilt function to correct cable loss (CATV band approx. 6 dB) ⑤ The V-ONU main unit has a low current consumption of 180mA. ⑥ Power supply comes with coaxial power supply and coaxial superimposition power supply (built-in power inserter) ⑦ With an optical fiber extra length processing function, a fiber tray that can store two connection sleeves and one WDM filter.

SMG8342M1.PDF FEATURES ●GaAs active devices ● Power gain @34dB ● Low distortion ● Excellent linear gain ● Low noise figure ● High reliability ● Low cost   DESCRIPTION The SMG8342M1 is a GaAs module. The part employs GaAS dies and is operated from 50MHz to 870MHz with supply +24V( DC). CHARACTERISTICS (Bandwidth 50 to 870MHZ; Tmb＝25℃, VB＝24V, ZS＝ZL＝75Ω) SYMBOL PARAMETER UNIT MIN. TYP. MAX. CONDITIONS Gp Power Gain dB 34 - 35.5 f=50MHZ Gp Power Gain dB 37 - - f=860MHZ SL Slope cable equivalent dB 2.0 - 3.5 f=50 to 870 MHZ FL Flatness of frequency response dB - - ±0.5 f=50 to 870 MHZ S11 Input Return Loss dB - - -16 f=50 to 870 MHZ S22 Output Return Loss dB - - -16 f=50 to 870 MHZ CTB Composite Triple Beat dB - - -60 PAL60 channelsflat; Vo=44dBmV; CTB measured at 543.25 MHz; CSO measured at 544.5 MHz; CSO Composite Second Order distortion dB - - -60 Xmod Cross Modulation dB - - -55 Vo Output Voltage dBmV 58 - - dim=-60dB F Noise Figure dB - - 7.5 f=860 MHZ Itot Total Current Consumption mA 100 130 - VB=+24V The module normally operates at VB=24 V(±0.5), If you want to know more about our product details,Please reply to get E-Catelog and FOC samples,Thank you.

Mini V-ONU F01.pdf 1. SCOPE This document describes basic electrical characteristics and mechanical characteristics of optical receiver FTTH-F01, which is produced in Shenzhen, PRC.  2. ELECTRICAL SEPCIFICATION 2.1 INPUTRANGE 2.1.1 OPTICAL INPUTRANGE Optical receiver FTTH-F01 should operate within specification of optical input range from -15dBm to -5dBm. 2.1.2 DC INPUTRANGE Optical receiver FTTH-F01 should operate within specification of DC input range from 4.8V to 5.2V.  2.2 OUTPUT LEVEL The optical receiver should operate within specification of output level from 70dBµV to 73dBµV with optical input range is from -15dBm to -5dBm.  2.3 ESD SENSITIVITY The optical receiver should operate within specification of ESD sensitivity according to the table below: ESD ESD sensitivity Human body model; R=1.5KΩ;C=100pF MAX=500 1 V 2.4 RF PERFORMANCE REQUIRMENT 2.4.1 BANDWIDTH The optical receiver should operate within specification of band width from 47MHz to 1000MHz 2.4.2 OUTPUT RETURNLOSS The exact output return loss should apply the specification that S22 ≦-14dB 2.4.3 DISTORTION REQUIREMENT The optical receiver should operate within specification of distortion requirement according to the table below: Composite Triple Beat dB - - -58 60 channels; Measured at 543.25MHz Optical power@- 10dBm Composite Second Order distortion dB - - -58 Noise carrier rating dB 43 - - 2.5 OPTICAL PERFORMANCE SPECIFICATION See the table below: Parameter λ1 1530 1550 1570 nm Optical Wavelength Range R 0.90 0.95 - A/W Op=0dBm ， λ=1550nm Responsivity Id - 0.3 0.5 nA Dark Current IL - - 0.7 dB Insert Loss ORL - - - dB Return loss - 45 - λ=1550nm λ=1550nm Optical Connector - SC - Green Green 3. ENVIRONMENTAL SPECIFICATION 3.1 TEMPERATURE The temperature include storage temperature and operating temperature, and the optical receiver should apply to the temperature specification as the table below 3.1.1 ABSOLUTE MAXIMUM RATINGS Parameter Symbol Unit Min Typ Max Note Optical Input Power Pin dBm - - +2.0 Levels above max range may result in (latent) damages to the machine Storage Temperature T-storage ºC -40 - +85 10 ... 95 % relative humidity; non-condensing 3.1.2 OPERATING ENVIRONMENTAL LIMITS Parameter Symbol Unit Min Typ Max Note Case Temperature T-case ºC 0 - +80 10 ... 80 % relative humidity; non-condensing Power Supply Voltage VPSU V 4.8 5.0 5.2 Power Consumption PPSU W - 0.6 1 VB=5V FTTH-F01 RF SPECIFICATIONS: Parameter Symbol Unit Min Typ Max Note RF passband FPB MHz - 75 - Minimum BW; RF output impedance Rimp_out Ω - - - AGC working range for optical input power Rimp_out dBm -15 - -5 Optical AGC will be implemented,the average optical input power controls the gain. RF output level RFout dBµV 70 72 73 Optical power input range in --5dBm~-15dBm Flatness Flatness dB - ±1 47~1000MHz Output Return Loss ORL dB - - -14 Modulation Error Ratio MER dB 33 - -  - Total 96channels input ,OMI=3.5%,Optical power@-15dBm Bit Error Ratio BER dB 1e-8 CNR CNR dB 43 60 channels; Measured at 543.25MHz Optical power@-10dBm CSO CSO dBc - - -58 CTB CTB dBc - - -58 Total current consumption(DC) Itot mA 130 - 170 VB=5V If you want to know more our product details,Please reply to get E-Catelog and FOC samples,Thank you.

SMG2301R.PDF FEATURES ● GaAs active devices ● Power gain @30dB ● Low distortion ● Excellent linear gain ● Low noise figure ● High reliability ● Low cost   DESCRIPTION The SMG2301R is a GaAs hybrid push-pull amplifier module. The part employs GaAs dies and is operated from 5 MHz to 200MHz with supply voltage +24V(DC).  CHARACTERISTICS (Bandwidth 5 to 200MHZ; Tmb＝25℃, VB＝12V, ZS＝ZL＝75Ω) SYMBOL PARAMETER UNIT MIN. TYP. MAX. CONDITIONS Power Gain dB 30 -31 31.5 f=10MHZ Slope cable equivalent dB -0.5 +0.5 f=5 to 200MHZ Flatness of frequency response dB ±0.3 f=5 to 200MHZ Input Return Loss dB -18 f=5 to 200MHZ Output Return Loss dB -18 f=5 to 200MHZ Composite Triple Beat dB -62 17 channels ;VO=50dBmV CTB measured at 77.25 MHz CSO measured at 78.5 MHz; Composite Second Order distortion dB -63 Cross Modulation dB -62 Noise Figure dB 4 f=200 MHZ Total Current Consumption mA 260 290 VB=+12V The module normally operates at VB=12 V(±0.5) If you want to know more our product details,please reply to get E-Catelog and FOC samples,Thank you.

SMO1025.PDF FEATURES ● Excellent Linearity ● High Optical Input Power Range ● Excellent Flatness ● Optimal Reliability ● Low Noise ● Outline Standarding ● GaAs MMIC ● High reliability ● FC/APC SC/APC   DESCRIPTION The SMO1025 has an FC/APC or SC/APC connector. Pin Description The amplifier supply voltage pin is connected to 24V(DC) . The CATV GaAs Optical Receivers have a mono mode optical input suitable for 1290 to 1600nm wavelengths a terminal to monitor the photo diode current and an electrical output having a characteristic impedance of 75Ω. CHARACTERISTICS (Bandwidth 40 to 1005MHZ; Tmb＝25℃, VB＝24V, ZS＝ZL＝75Ω) SYMBOL PARAMETER UNIT MIN. TYP. MAX. CONDITIONS Responsivity V/W 850 - - λ=1300nm Flatness straight line dB - - ±0.75 f=40 to 1005 MHZ Output voltage dBμV - 88 - 110 channels flat; Popt= - 1dBm; CTB measured at 745.25 MHz; CSO measured at 746.5 MHz; Composite triple beat dB - -65 - Composite second order distortion dB - -63 - Carrier to noise ratio dB - -51 - Output return loss dB - -11 - f=40 to 1005 MHZ Total current consumption mA 240 - 290 VB=24V The module normally operates at VB=24 V(±0.5)

MDU RFoG F01.PDF Product Description： The MDU RFoG series FTTB Node is mainly used for RFoG network. “OBI-Free” R-ONU eliminate the Optical Beat Interferences(OBI) that has been an issue in the traditional RFoG deployments. Its return path laser can work in burst or continuous mode.The upstream output optical wavelength can be set as CWDM standard wavelength to shield the OBI effectively.   Features： 1) Support downstream optical AGC， whose control range is -6~0dBm； 2) Adopt electrically adjustable mode for both EQ and ATT circuit using LED displaying screen to modify directly； 3) Upstream output optical wavelength is optional(or specified by the user) . 4) Burst mode is supported； 5) OBI-Free technology on this model support up to 16 R-ONUs transmitting into a single optical input.

SMO-P16.PDF FEATURES ● CATV 1GHz RF frequency bandwidth. ● Integrated WDM for GPON OLT wavelength bypass (1490/1310nm). ● Automatic gain control (AGC) of RF output level. ● Compact integrated mechanical housing. ● Module design and Plug & Play function. ● DC power on indication LED. ● AC/DC 12V power adaptor(standard)   DESCRIPTION SMO-P16 Optical Receiver is a high performance 1GHz CATV optical receiver for converting TV signal from optical fiber network into RF signal over coax cabling in residential homes. This product features compact size, high CNR, low distortion, low power consumption, easy installation and cost effectiveness. It supports conventional analog TV RF as well as Digital Video Broadcasting signals. RF output level can be adjusted with manual gain control. The SMO-P16 is the best choice to be used on FTTH services. It has WDM devices integrated for combing GPON (IP) signals of wavelengths 1310nm (upstream) & 1490nm (downstream) with 1550nm CATV signal in the same fiber.
